Description

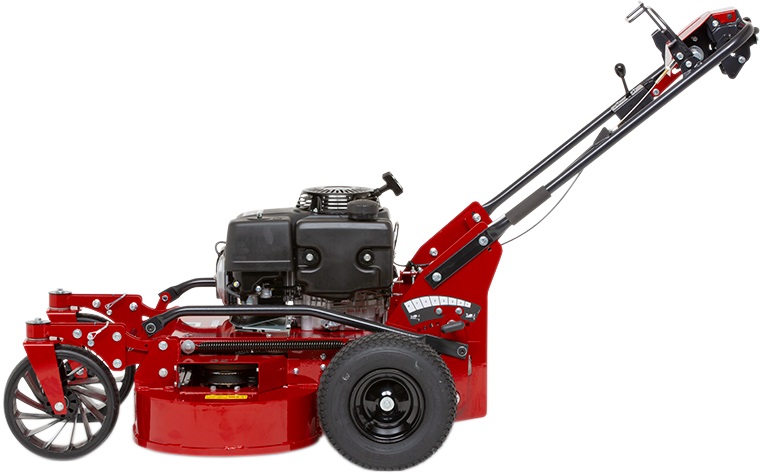

The all-new Ferris FW15 variable hydrostatic walk-behind provides a narrow footprint for trimming around trees and planter beds. Manoeuvrable and easy to operate, this mower will become a firm favourite with landscapers across the country.
With a smooth and user friendly operation, the new Ferris FW15 can be operated comfortably with one hand, with adjustable speed control and handlebars with 4-position set up for complete operator comfort.

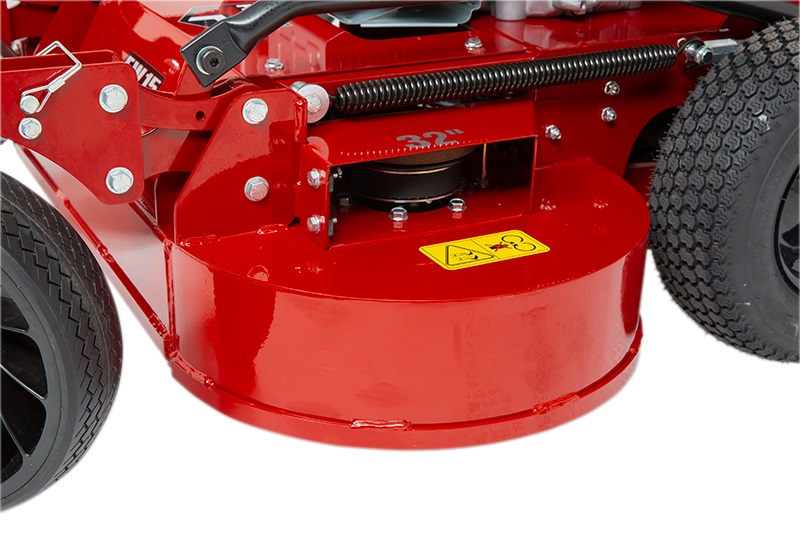

The compact 32″ reinforced steel deck comes with dual timed cutting blades and spring assisted height of cut adjustment lever for quick and simple height change. The Deck can be configured to either mulch or side discharge.
Ferris FW15 Specification
| Engine | |
|---|---|
| Make | Honda- Petrol |
| Model | GXV390 – Stage 5 |
| Horsepower | 10.2 HP |
| Cylinders / Displacement | 389 cc |
| Cooling | Air cooled |
| PTO | Electric PTO clutch |
| Starting | Electric |
| Fuel Capacity | 2.1 Litres |
| Mower | |
| Cutting width (cm/inch) | 81 cm / 32” Mulch deck |
| Deck Configuration | Mulching deck. 2 Marbain steel cutting blades, 5mm thickness |
| Cutting Height (cm) | 3.8 – 12.7 cm |
| Deck Construction | 2.7 mm fabricated construction, timed steel. |
| Mower Spindles | Cast aluminium 19.05 mm. Greasable, 5204-2RS double row bearings |
| Deck lift system | Single point spring assisted |
| Suspension & Drive Train | |
| Suspension | n.a. |
| Transmission | Hydrostatic Hydro Gear RT-310 |
| Drive Tyres (inch) | 13×5.00-6 |
| Caster Tyres (inch) | Latched (lockable) ‘Tweel-style’ swivel wheels, 10.5×3.00 |
| Noise and Vibration | |
| HAV | < 2.5 |
| WBV | N/A |
| Sound dB(A) | TBC |
| Ground Speed | |
| Speed-fwd. (km/h) | 0 – 6.4 km/h |
| Speed-rev. (km/h) | 0 – 3.2 km/h |
| Dimensions | |
| Overall length (cm) | 189 |
| Overall width (cm) | 83 |
| Dry weight (Kgs) | 122 |
| Operator Control & Comfort Systems | |
| Roll-Over Protection Structure | n.a. |
| Controls | Adjustable handlebar (4 height position), single hand operation |
| Parking Brake / Safety Circuit | Integrated transaxle brake |
| Warranty | |
| Engine | 2-Year Manufacturer’s Limited Warranty |
| Transmission | 2-Year Manufacturer’s Limited Warranty |
| Balance of machine | 2-Year Limited Warranty commercial use. Unlimited hours, front to rear, parts and labour. Belts, Tyres, Brake Pads, Battery, Blades: 90 days |
